| PT-6P VSD Screw Compressor Data Sheet | |||
| Basic data | Model | PT-6P VSD | Remark |
| Cooling method | Air cooling | ||
| Free Air Delivery / Discharge Pressure m3/min Mpa |
0.25-0.5 | 0.8MPa | |
| 0.21-0.42 | 1.0MPa | ||
| 0.18-0.36 | 1.25MPa | ||
| Lubricant oil VolumeL | 3.5L | ||
| Nominal power supply conditions | 220V | ||
| Capacity control system | Permanent magnet frequency conversion | ||
| Drive Type | Direct | ||
| Reference Conditions Ambient & pressure (/bar.g) | 15 | ||
| Overall dimensions of unit. L x B x H (mm) | 1020*500*1035 | ||
| Overall weight (kg) | 120 | ||
| Air outlet port size(inch) | G1/2internal thread | ||
| Motor data | Type of Motors | Permanent magnet | |
| Power (KW) | 4.5kw | ||
| Cooling method | Permanent magnet | ||
| Motor Rating Speed rpm | 3000 | AW045 | |
| Starting Method | Frequency conversion | ||
| Voltage/frequency | 220/300 | ||
| IP grade | 23 | ||
| insulation grade | F | ||
| Performance data | Bearing temp. () | / | |
| Screw case temp. () | 30 | According to ambient temperature |
|
| Discharge air temp. ( ) | 40(air tank outlet temperature) | According to ambient temperature |
|
| Oil carry over (ppm) | 3 | ||
| Vibration level(mm/s) | 1.2 | ||
| Noise Level dB(A) | 68 | ||
| Unload sump pressure bar.g |
4.5 |

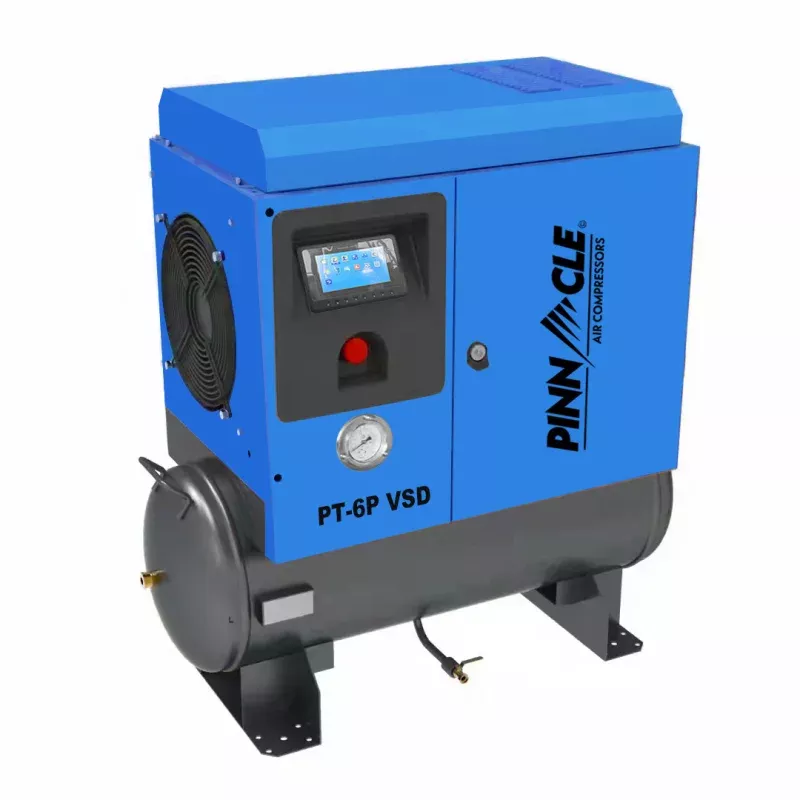

Pinnacle PT-6P VSD Variable Speed Drive Screw Compressor
Original price was: $87.20.$49.06Current price is: $49.06.
