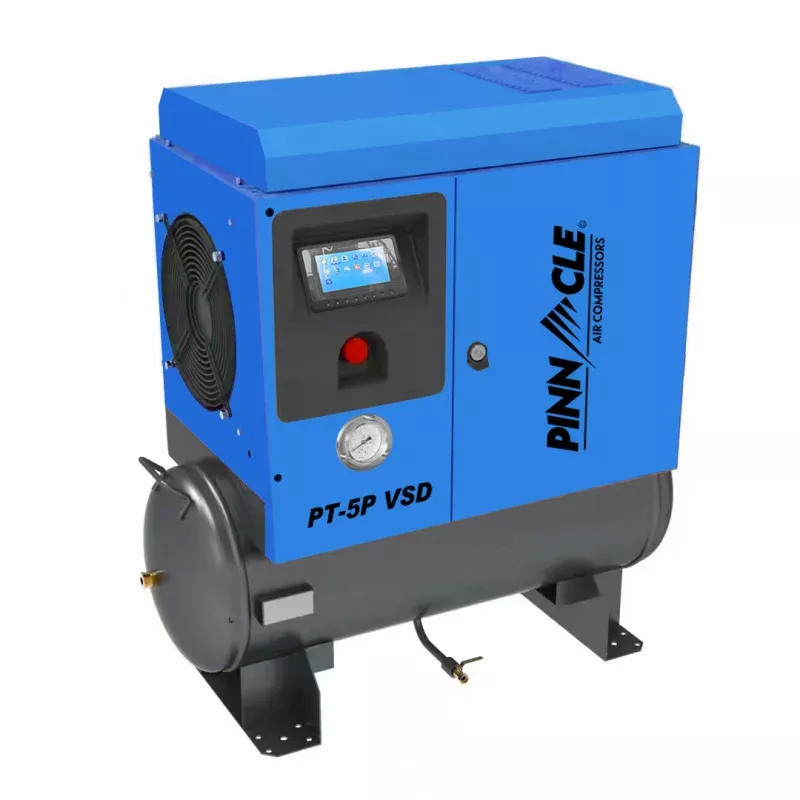

Pinnacle PT-5P VSD Variable Speed Drive Screw Compressor

Original price was: $88.80.Current price is: $51.15.

Sale!

SKU: DBM1279562611 Category: hot sale

PT-5P VSD Screw Compressor Data Sheet
Basic data	Model	PT-5P VSD	Remark
Cooling method	Air cooling
Free Air Delivery / Discharge Pressure m3/min Mpa	0.2-0.4	0.8MPa
0.175-0.35	1.0MPa
0.15-0.3	1.25MPa
Lubricant oil VolumeL	3.5L
Nominal power supply conditions	220V
Capacity control system	Permanent magnet frequency conversion
Drive Type	Direct
Reference Conditions Ambient & pressure (/bar.g)	/
Overall dimensions of unit. L x B x H (mm)	10205001035
Overall weight (kg)	120
Air outlet port size(inch)	G1/2 internal thread
Motor data	Type of Motors	Permanent magnet
Power (KW)	3.7kw
Cooling method	Air cooling
Motor Rating Speed rpm	2600
Starting Method	Frequency conversion
Voltage/frequency	220/300
IP grade	23
insulation grade	F
Performance data	Bearing temp. ()
Screw case temp. ()	30	According to ambient temperature
Discharge air temp. ()	40(air tank outlet temperature)	According to ambient temperature
Oil carry over (ppm)	3
Vibration level(mm/s)	1.2
Noise Level dB(A)	68
Unload sump pressure bar.g	4.5
