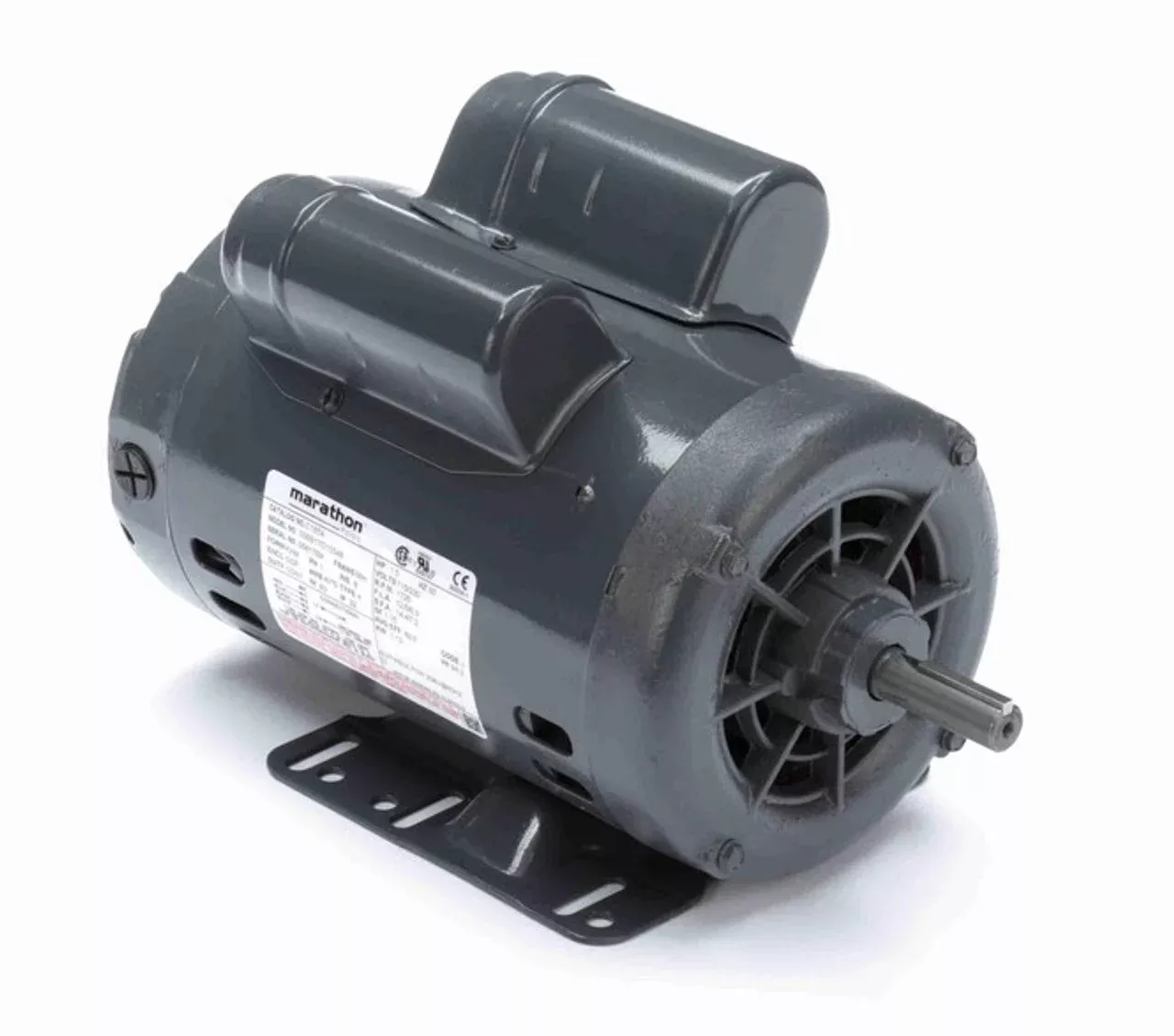

1 1/2 HP 1800 RPM Electric Motor
This high-performance electric motor is designed for general-purpose applications requiring a single-phase electric motor. It features a durable construction and reliable operation, making it an excellent choice for various tasks.
Specifications:
- Power: 1 1/2 hp
- Speed: 1800 rpm
- Amperage: 12.6/6.4-6.3 amps
- Voltage: 115/208-230 volts
- Frequency: 60 Hz
- Frame: NEMA 56
- Shaft Diameter: 5/8″ x 1 7/8″
- Service Factor: 1.15
- Overload Protection: None
- Mounting: Rigid base mount
- Bearings: Ball bearings
- Insulation Class: Class B
- Warranty: 1 year manufacturer warranty
- Type: Open Drip Proof (ODP)
- Reversible: Yes
This motor is an updated version of the C185A and is suitable for a variety of applications. It comes with a wiring diagram on the motor plate for easy installation.
